Product Details

Gross weight 4.936 Kilograms

Net weight 4.09 Kilograms

Volume 21.569 Liters EAN  5702427378995

Product View (Switch)  GLBL  Global (Standard)

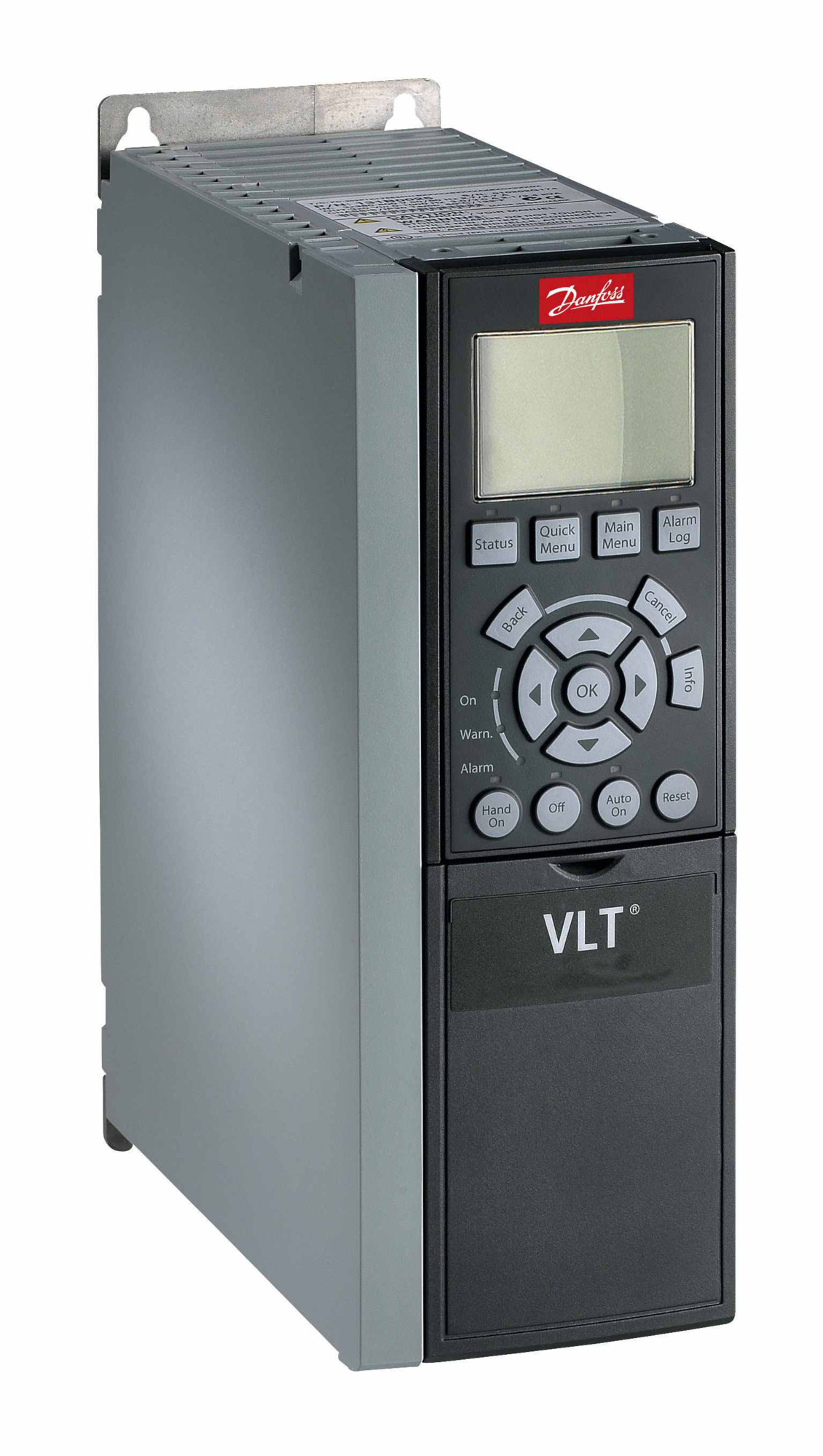

Product Type  FC-  VLT® AQUA Drive FC-

Series  202  202

Rated Power  P4K0  (P4K0)  4.0 KW / 5.0 HP

Phase  T  Three-phase

Main Power Supply Voltage  4  380 - 480 VAC

Case  E20  (E20) IP20 / Rack

RF Interference Filter  H2  A2 Class RFI (C3)

Brake - Safety Stop  X  No Brake Chopper

LCP  G  Graphical Local Control Panel

Coated PCB  X  Uncoated PCB

Main Power Supply Option  X  No Main Power Supply Option

Adjustment A  X  Standard Cable Entrance

Adjustment B  X  No Adjustment

Software Version  SXXX  Latest Version Standard Standard

Software Language Package  X  Standard Language Package

A Option  AX  No A Option

B Option  BX  No B Option

C0 Option  MCO  CX  No C0 Option

C1 Option  X  No C1 Option

C Option Software  XX  No Software Option

D Option  DX  No D Option

Rack Size  A2  A2

Type Code Part 1  FC-202P4K0T4E20H2XGX

Type Code Part 2  XXXSXXXXAXBXCXXXXDX

Product Catalog  NO_VIEW  Ignore View

Power 150% (Normally Open) [KW]  4  4

Power 110% (Normally Open) [KW]  4  4

Height [mm]  268,0  268,0

Width without C Option  [mm]  90,0  90,0

Width (with two C Options)  [mm]  150,0  150,0

Depth [mm]  205,0  205,0

Depth with Option A/B  [mm]  220,0  220,0

kVA  6.93  6.93

Power Loss NO [W]  124  124

Power Loss NO [W]  124  124

Power Loss HO [W]  124  124

Power Loss HO [W]  124  124

Continuous Current (Normally Open) [A]  10  10

Intermittent Current (Normally Open) [A]  11  11

Continuous Current (HO) [A]  10  10

Intermittent Current (HO) [A]  15  15

Continuous Current (HO) [A]  8.2  8.2

Intermittent Current (HO) [A]  9.02  9.02

Calculated Gross Weight [kg]  4.936

Calculated Net Weight [kg]  4.09 ECCN EU Y901 Y901

ECCN US 3A999.a 3A999.a
