Product Details
Gross weight 24.34 Kilograms
Net weight 20.64 Kilograms
Volume 105.71 Liters EAN 5702427466784
Product View (Switch) GLBL Global (Standard)

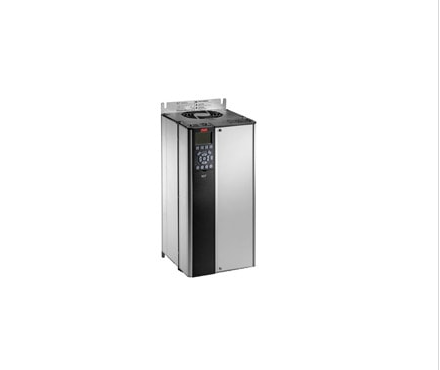

Product Type FC- VLT® AQUA Drive FC-
Series 202 202
Rated Power P37K (P37K) 37 KW / 50 HP
Phase T Three-phase
Main Power Supply Voltage 4 380 - 480 VAC
Case E20 (E20) IP20 / Rack
RF Interference Filter H2 A2 Class RFI (C3)
Brake - Safety Stop X No Brake Chopper
LCP G Graphical Local Control Panel
Coated PCB X Uncoated PCB
Main Power Supply Option X No Main Power Supply Option
Adjustment A X Standard Cable Entrance
Adjustment B X No Adjustment
Software Version SXXX Latest Version Standard Standard
Software Language Package X Standard Language Package
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 Option
C1 Option X No C1 Option
C Option Software XX No Software Option
D Option DX No D Option
Rack Size B4 B4
Type Code Part 1 FC-202P37KT4E20H2XGX
Type Code Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO_VIEW Ignore View
Power 150% (Normally Open) [KW] 30 30
Power 110% (Normally Open) [KW] 37 37
Height [mm] 516,0 516,0
Width without C Option 229,0 229,0
Depth [mm] 242,0 242,0
Depth with Options A/B 242,0 242,0
kVA 50.6 50.6
Power Loss NO [W] 698 698
Power Loss NO [W] 698 698
Power Loss HO [W] 570 570
Power Loss HO [W] 570 570
Continuous Current (Normally Open) [A] 73 73
Intermittent Current (Normally Open) [A] 80.3 80.3
Continuous Current (Normally Open) [A] 65 65
Intermittent Current (Normally Open) [A] 71.5 71.5
Continuous Current (HO) [A] 61 61
Intermittent Current (HO) [A] 91.5 91.5
Continuous Current (HO) [A] 52 52
Intermittent Current (HO) [A] 78 78
Calculated Gross Weight [kg] 24.34
Calculated Net Weight [kg] 20.64 ECCN EU Y901 Y901
ECCN US 3A999.a 3A999.a
