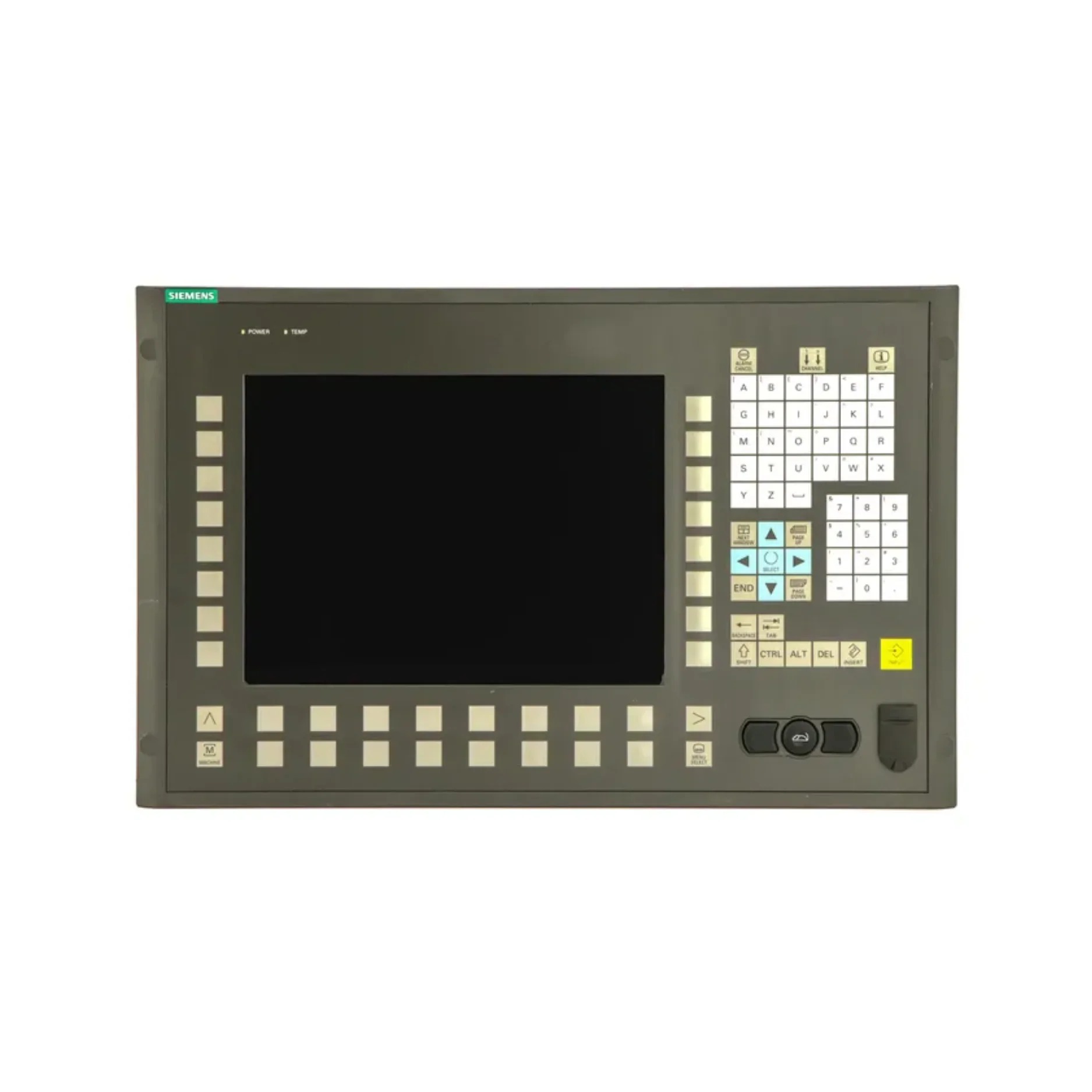

Siemens 6FC5203-0AF02-0AA1 SINUMERIK OP 012 Operator Panel Front

The Siemens 6FC5203-0AF02-0AA1 SINUMERIK OP 012 is a professional operator panel front developed for Siemens CNC machine-tool applications. The 12.1-inch TFT color display provides 800 × 600 pixel SVGA resolution for clear visualization of CNC information, while the 59-key membrane keypad, softkeys and integrated mouse provide multiple methods for machine operation and control. The vertical softkeys can also be used as direct keys in the PLC when the appropriate configuration is available.

Designed in a 19-inch format, the SINUMERIK OP 012 has dimensions of 483 × 310 × 30 mm and is mounted from the rear using dedicated mounting clamps. The front side provides IP65 protection, while the rear is rated IP00. The unit operates with a 5 V DC supply provided through a compatible PCU, TCU or video-link receiver and has a maximum power consumption of 21 W.

The Siemens 6FC5203-0AF02-0AA1 is a legacy SINUMERIK component that remains relevant for maintenance and replacement of existing CNC equipment. Siemens documentation lists the OP 012 for compatible SINUMERIK control configurations, while product lifecycle records indicate that this exact order number was cancelled in 2017 and identify 6FC5203-0AF02-0AA2 as the successor. For CNC maintenance teams, machine-tool builders and automation service providers, the exact original part number is therefore important when sourcing a replacement operator panel.
