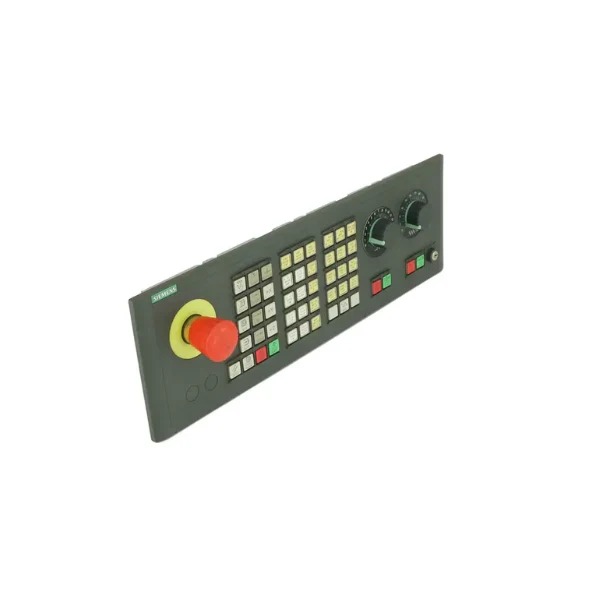

The Siemens 6FC5203-0AF22-0AA2 SINUMERIK MCP 483C is a dedicated machine control panel for Siemens CNC applications. It provides a practical operator interface for machine-level control and is equipped with mechanical keys, MPI communication, spindle and feed control functions, a key switch, and an emergency-stop function. The 19-inch panel format allows integration into suitable CNC machine operator stations and control cabinets.
The MCP 483C operates from a 24 V DC power supply and has a maximum power consumption of 5 W. Siemens specifies IP54 protection at the front and IP00 protection at the rear, with an operating temperature range of 0 to 45 °C at the front and 0 to 55 °C at the rear. The panel measures 483 mm wide, 155 mm high, and 77 mm deep, with a 450 × 135 mm panel cutout.
The 6FC5203-0AF22-0AA2 is particularly relevant for maintenance, CNC machine repair, retrofit, and replacement projects involving SINUMERIK 810D powerline and 840D powerline systems. Siemens documentation identifies it as the compatible successor to the 6FC5203-0AF22-0AA0, making it a useful replacement option for existing MCP 483C installations.
