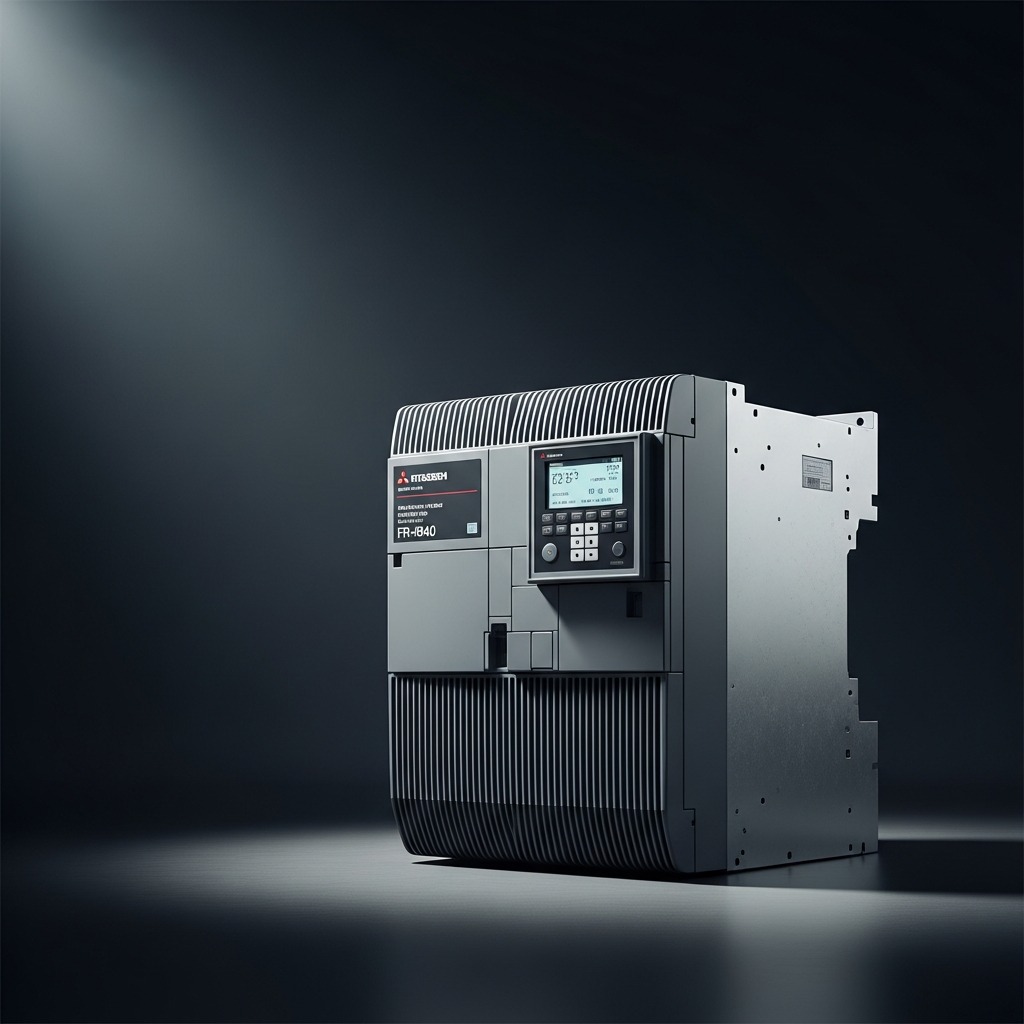

Mitsubishi Electric FR-A840-00126-E2-60 Heavy Duty VFD 2.2 kW 400 V Class FR-A800-E Inverter

The Mitsubishi Electric FR-A840-00126-E2-60 is a high-performance variable frequency drive from the FR-A800-E inverter family. Designed for three-phase 380 to 500 V AC systems, this model provides a Heavy Duty rating of 2.2 kW and 6 A, making it suitable for applications where dependable motor control and overload capability are required. Its support for both induction motors and permanent magnet motors gives engineers flexibility when selecting the appropriate motor technology for an automation system.

The FR-A840-00126-E2-60 offers several motor control modes to accommodate different industrial requirements. Available control methods include V/F control, real sensorless vector control, PM sensorless vector control, and magnetic flux vector control. The inverter also includes an integrated EMC filter and Safe Torque Off functionality. A built-in brake transistor and PLC functionality further expand its suitability for industrial machine applications.

For machine builders, system integrators, maintenance engineers, and industrial automation users, the FR-A840-00126-E2-60 provides a compact drive solution for controlling AC motors in demanding applications. Typical applications can include conveyors, pumps, fans, machine tools, production machinery, and automated material-handling equipment. When replacing an existing inverter, users should verify the complete model number, motor power, voltage, current rating, control method, braking requirements, and system compatibility before installation.
